Spec Detail
| Item | Specifications |
|---|---|

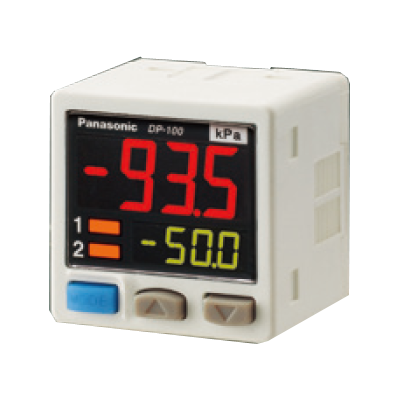

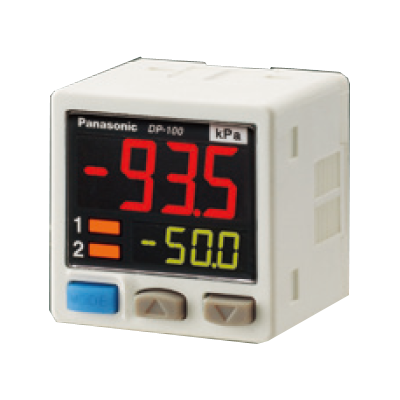

| Product Number | DP-101 |
| Part Number | DP-101 |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Type of pressure | Gauge pressure |
| Rated pressure range | -100.0 to +100.0 kPa |
| Set pressure range | -101.0 to +101.0 kPa -1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
| Pressure withstandability | 500 kPa |
| Applicable fluid | Non-corrosive gas |
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Power consumption | Normal operation : 720 mW or less (Current consumption 30 mA or less at 24 V supply voltage) ECO mode : 480 mW or less at STD (Current consumption 20 mA or less at 24 V supply voltage) 360 mW or less at FULL (Current consumption 15 mA or less at 24 V supply voltage) |
| Comparative output | <PNP output> PNP open-collector transistor – Maximum source current : 100 mA – Applied voltage : 30 V DC or less (between comparative output and +V) – Residual voltage : 2 V or less (at 100 mA source current) |
| Comparative output : Output operation | NO / NC (selectable by key operation) |
| Comparative output : Output modes | EASY mode / Hysteresis mode / Window comparator mode |
| Comparative output : Hysteresis | Minimum 1 digit (variable)(however, 2 digits when using psi unit) |
| Comparative output : Repeatability | ±0.1 % F.S. (within ±2 digits) |
| Comparative output : Response time | 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms, 100 ms, 250 ms, 500 ms, 1,000 ms, 5,000 ms, selectable by key operation |
| Comparative output : Short-circuit protection | Incorporated |
| External input | – |
| Analog voltage output | – |
| Analog current output | – |
| Display | 4 digits + 4 digits 3-color LCD display (Display refresh rate : 250 ms, 500 ms, 1,000 ms, selectable by key operation) |
| Display : Displayable pressure range | -101.0 to +101.0 kPa -1.030 to +1.030 kgf/cm2 -1.010 to +1.010 bar -14.64 to +14.64 psi -757 to +757 mmHg -29.8 to 29.8 inHg |
| Indicator | Orange LED (Comparative output 1 operation indicator, comparative output 2 operation indicator : Lights up when each comparative output is ON) |
| Protection | IP40 (IEC) |
| Ambient temperature | -10 to +50 ℃ +14 to +122 ℉, Storage : -10 to +60 ℃ +14 to +140 ℉ |
| Ambient humidity | 35 to 85 % RH (No dew condensation or icing allowed), Storage : 35 to 85 % RH |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Insulation resistance | 50MΩ or more with 500 V DC megger between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm 0.118 in double amplitude or maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each (when panel is mounted: 10 to 150 Hz frequency, 0.75 mm 0.030 in amplitude or maximum acceleration 49 m/s2, in X, Y and Z directions for two hours each) |
| Shock resistance | 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions three times each |
| Temperature characteristics | Within ±0.5 % F.S. (at +20 ℃ +68 ℉) |
| Pressure port | M5 female thread + G 1/8 male thread |
| Material | Enclosure : PBT (glass fiber reinforced), LCD display : Acrylic, Pressure port : Stainless steel (SUS303), Mounting threaded part : Brass (nickel plated), Switch part : Silicone rubber |
| Connecting method | Connector |
| Cable length | Total length up to 100 m 328.084 ft (less than 30 m 98.425 ft when conforming to CE marking) is possible with 0.3 mm2, or more, cable |
| Weight | Net weight: 40 g approx., Gross weight: 130 g approx. |
| Accessories | CN-14A-C2 (Connector attached cable 2 m 6.562 ft): 1pc. (excluding M8 plug-in connector type) |
